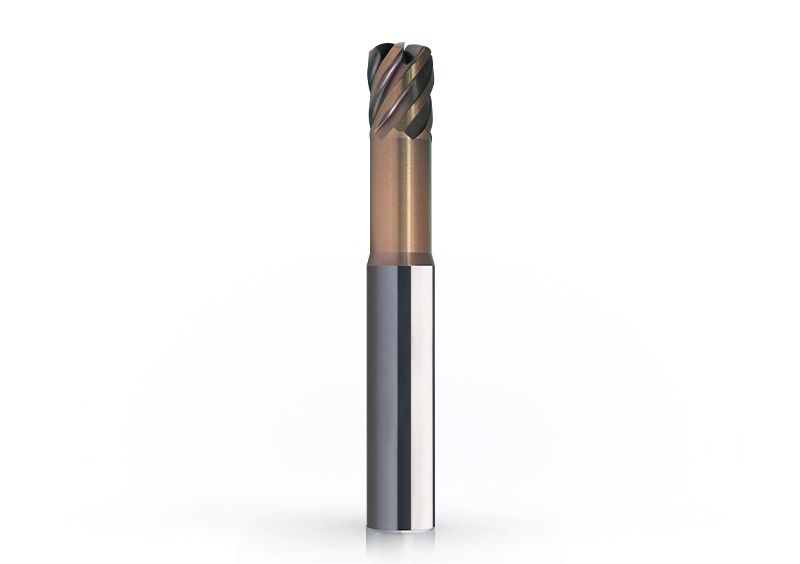

high feed Series

Applications

High Feed

Applications

Workpiece Materials:

Hardness:

36 - 52 HRC

Side Milling

Slotting

Plunging

Helical Interpolation

Face Milling

Features & Benefits

High Feed Profile

  • Enables high-feed machining with thin-chip formation for higher MRR and improved chip evacuation.

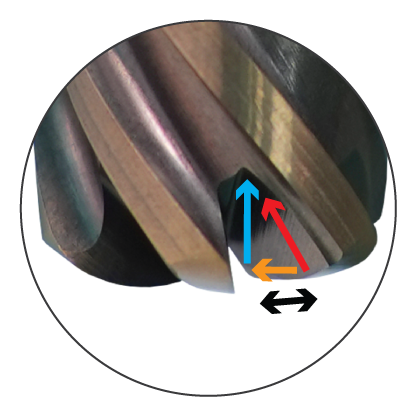

Axial Cutting Force Design:

  • Directs most cutting forces along the spindle axis, minimizing tool deflection.
  • Enhances stability during high-feed machining, even in long overhang setups.

Central Coolant Hole:

  • Enhances chip evacuation and thermal control, especially effective in deep cavity or blind hole applications.

Supreme Edge Technology

Consistent cutting

  • Uniform cutting edges ensure consistent machining.
  • Smooth edge surface enhances coating adhesion and chip flow for superior surface finishing.
  • Reduced friction and abrasion resistance contribute to longer tool life.

Coating

Prolong the tool life.

Faster cutting


High Flute Count

Faster cutting, smoother finish.

Faster cutting

Supreme Edge Technology

Better chip flow, less friction.

Consistent cutting

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Faster cutting, smoother finish.

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

3.1×

table feed

Short chips

#1  ASIA

Tool Test

Head-to-head parameters

Current: roughing using one tool · HPMT test: roughing using 2 tools

Parameter Competitor H HPMT · Tool 1 HPMT · Tool 2
Tool D3 Torus End Mill NTC 45 HF RC 9 M15 0300 050 04 NTC 45 HF RC 15 M15 0300 050 04 15
S (rpm) 3,400 4,300 3,200
F (mm/min) 125 570 380
Ap (mm) 0.2 0.12 0.12
Ae (mm) 3.0 3.0 3.0
Depth until 14.7 9.0 14.7
Cycle time 40 min 8 min 55 s 8 min 38 s

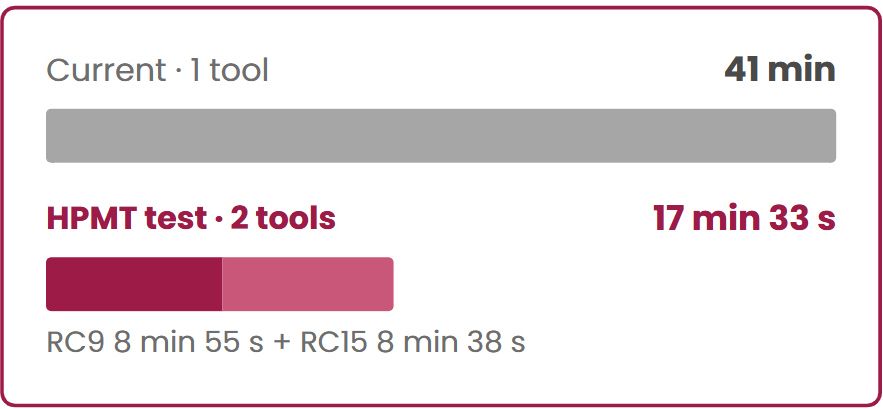

Roughing cycle time

lower is better

57% SHORTER CYCLE TIME

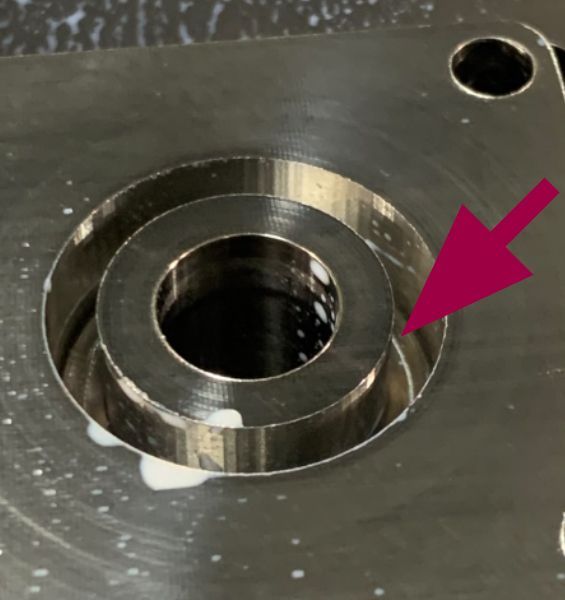

Material

Hastelloy C22

Application

Slot roughing

Tools

Ø8 mm · NiTiCo 45 HF vs Competitor H Torus

Depth

14.7 mm
