STEEL TURNING INSERT

Applications

Trochoidal milling

Ramping

High Feed Milling -

XDKX 12T308 / 12T3HF

Applications

Workpiece Materials:

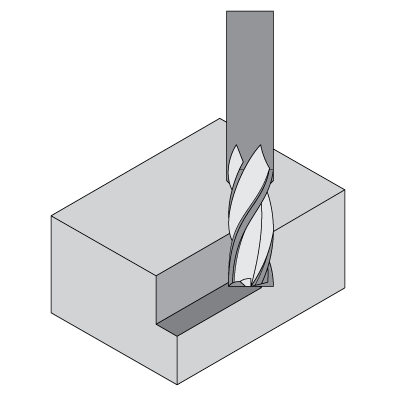

Side

Milling

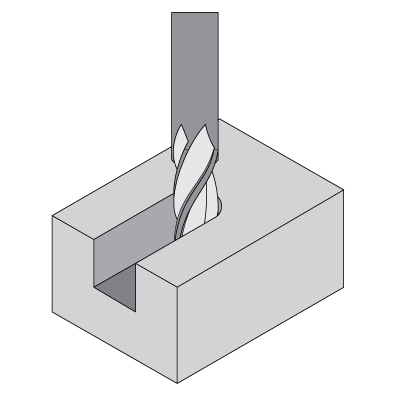

Slotting

Chamfering

Helical Interpolation

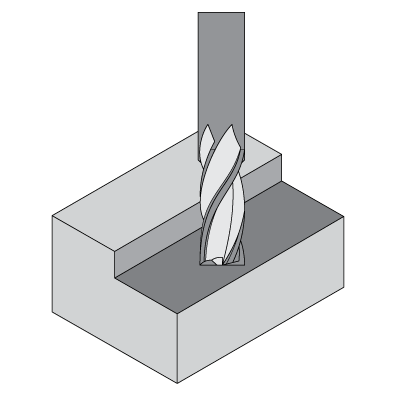

Face Milling

Profiling

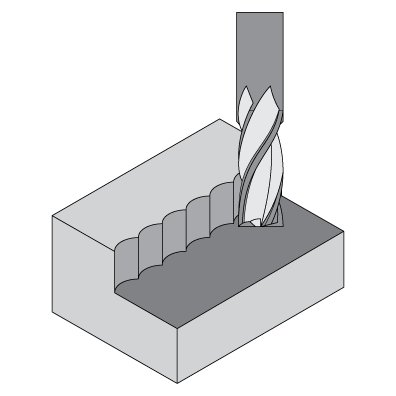

Plunging

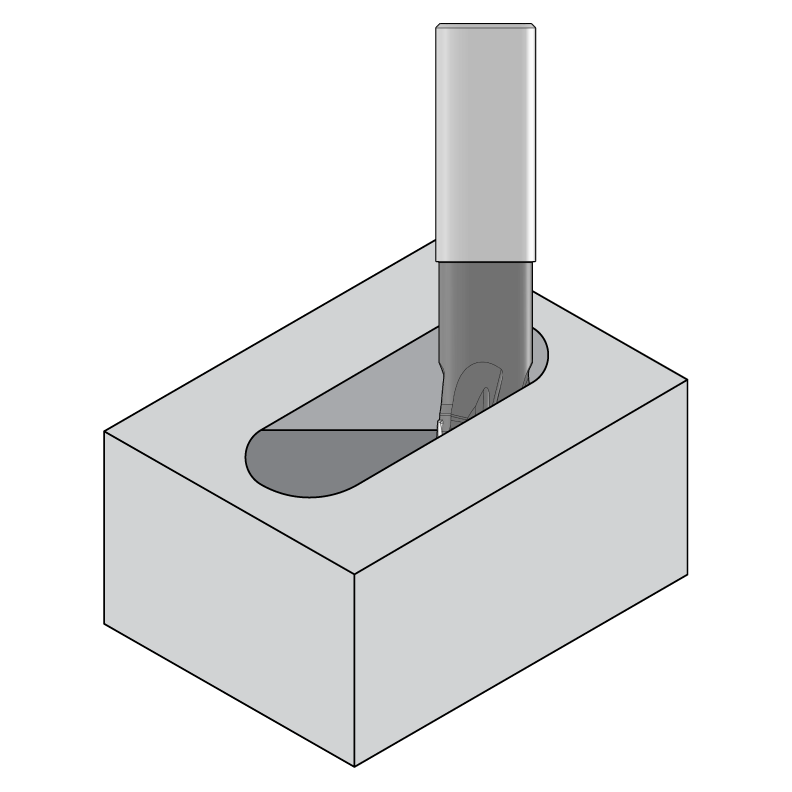

Ramping

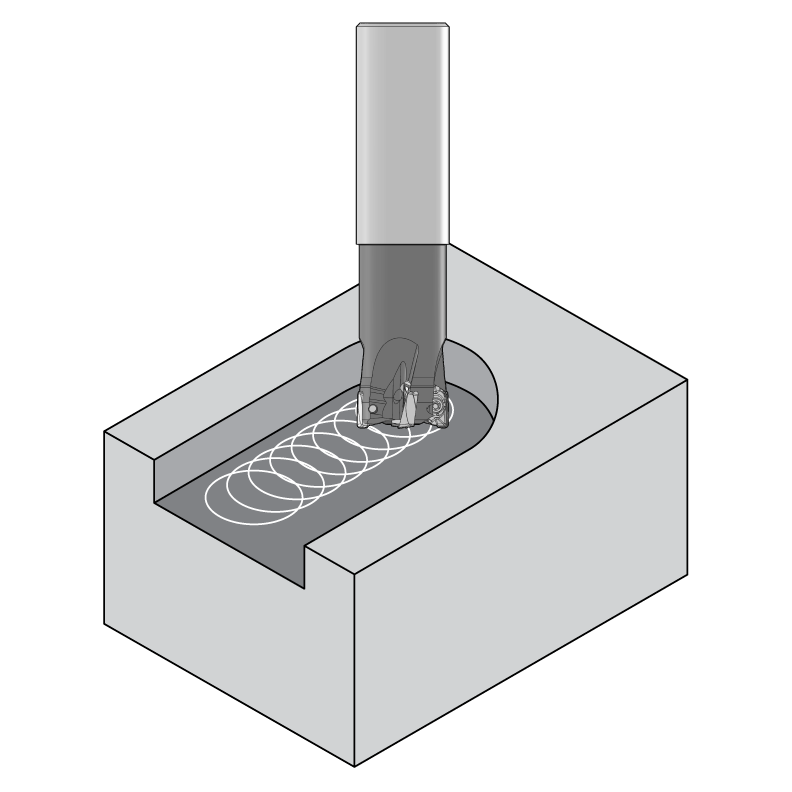

Trochoidal milling

Faster cutting


High Flute Count

Faster cutting, smoother finish.

Faster cutting

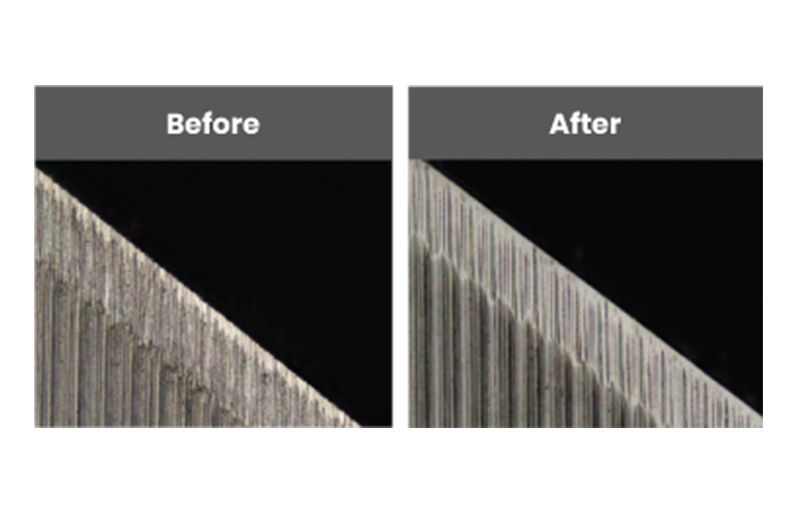

Supreme Edge Technology

Better chip flow, less friction.

Consistent cutting

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Faster cutting, smoother finish.

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

3.1×

table feed

Short chips

Torus end mill HPMT High Feed
Flutes 4 6
Feed per tooth fz 0.180 mm 0.300 mm
Table feed Vf 2,292 mm/min 6,446 mm/min
Metal removal rate 1.93 cm³/min 5.78 cm³/min
Cycle time 2 h 16 min 05 s 52 min 27 s

Faster cutting

metal removal rate

Features & Benefits

High feed geometry for maximum productivity

Small entering angle enables higher feed rates at the same cutting load.

Excellent ramp down capability

Optimized geometry enables smooth ramping and helical entry.

Large insert seating contact area

Stable seating ensures reliable cutting at high feeds and loads.

Axial cutting force for long reach

Shallow entry angle reduces deflection for deep cavity machining.

Tool Test

HPMT internal testing. Comparable insert brands not named.

CUTTING PARAMETERS

Cutting speed Vc

144 m/min

Feed fz

0.60 mm/tooth

Depth ap
0.6 mm per layer

Width ae
9.0 mm

Coolant

Wet

HPU2500

HPS2500

Comparable T

Comparable D

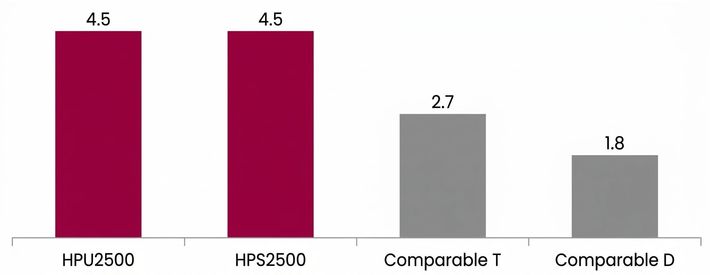

Cutting distance before stop (m)

+66%

longer tool life than the best comparable insert
