High Feed Series

Applications

Trochoidal milling

Ramping

High Feed

Applications

Workpiece Materials:

Hardness:

50-70 HRC

Side Milling

Slotting

Plunging

Helical Interpolation

Face Milling

Features & Benefits

High Feed Profile

  • Enables high-feed machining with thin-chip formation for higher MRR and improved chip evacuation.

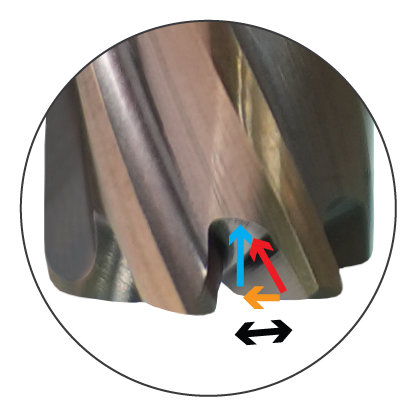

Axial Cutting Force Design:

  • Directs most cutting forces along the spindle axis, minimizing tool deflection.
  • Enhances stability during high-feed machining, even in long overhang setups.

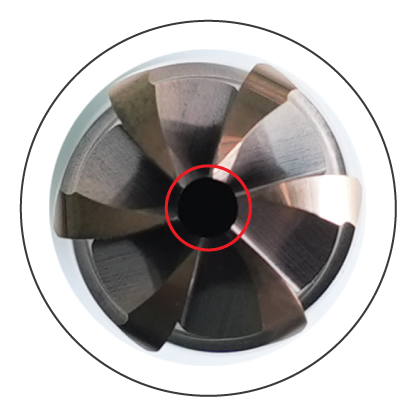

Central Coolant Hole:

  • Enhances chip evacuation and thermal control, especially effective in deep cavity or blind hole applications.

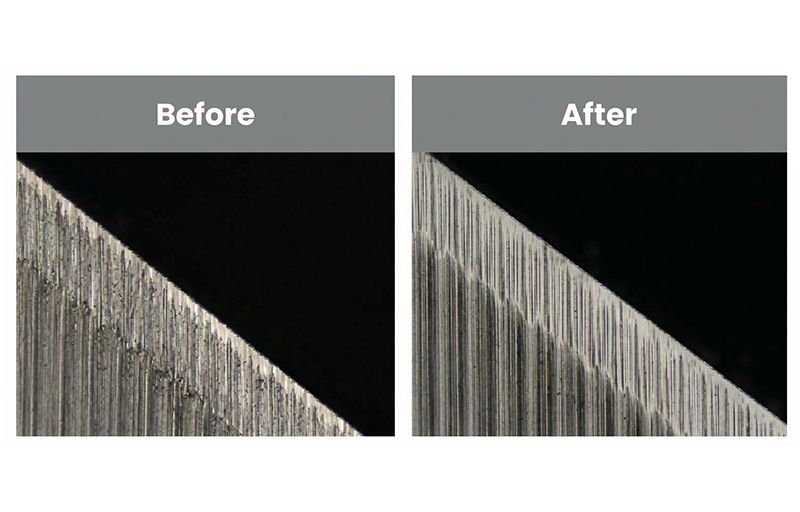

Supreme Edge Technology

Consistent cutting

  • Uniform cutting edges ensure consistent machining.
  • Smooth edge surface enhances coating adhesion and chip flow for superior surface finishing.
  • Reduced friction and abrasion resistance contribute to longer tool life.

Coating

Prolong the tool life.

Faster cutting


High Flute Count

Faster cutting, smoother finish.

Faster cutting

Supreme Edge Technology

Better chip flow, less friction.

Consistent cutting

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

Faster cutting, smoother finish.

Standard 4-flute

Standard 4-flute

Standard 4-flute

Standard 4-flute

3.1×

table feed

Short chips

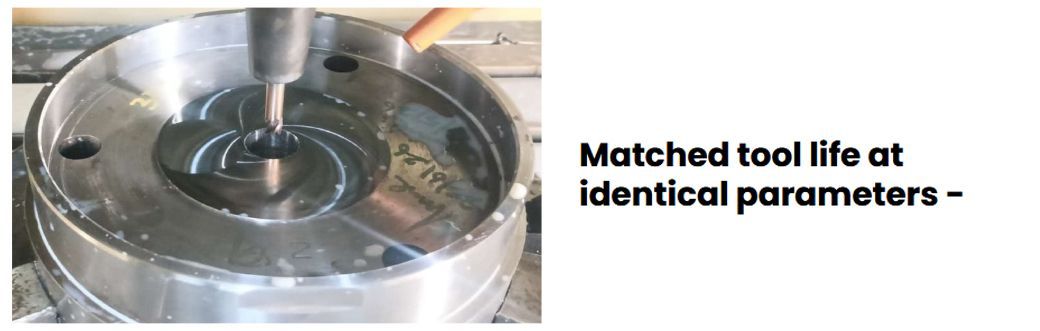

Tool Test

Head-to-head parameters

Parameter HPMT DM70X Competitor M2
Cutting speed Vc m/min 120 120
Spindle speed S rpm 4,775 4,775
Feed rate F mm/min 3,430 3,430
Radial depth Ae mm 4.0 4.0
Axial depth Ap mm 0.35 0.35
  • Paired with DM70X Ballnose A6Q for finishing, customer was satisfied

  • Better cost per part – same output, lower tool cost. Accuracy achieved: 0.007 mm; target: 0.020 mm

Material

YXR 3, 58 – 60 HRC

Application

Roughing

Tools

Ø8 mm · DM70X vs Competitor M2

Target

8 mins – each pieces

Automotive industry · Ø8 mm
